Passive House Wooden Windows IV92 - For Passivhaus Projects

92mm profile, triple-glazed, custom-made since 1997

Request a Free Quote Technical Specifications

Uw 0.71 W/m²K

Thermal insulation

32-49 dB

Acoustic insulation

5 Years

Warranty

Standard nZEB vs Stricter Requirements

If the designer has not specified the Passivhaus standard, IV78 meets the requirement.
IV92 adds no technical value without this context.

nZEB

nZEB is the legal standard for new buildings in Romania — Uw ≤1.0 W/m²K for windows and doors. IV78, with a value of 0.81 W/m²K, easily meets this requirement.

Passivhaus

The Passivhaus standard is different: energy consumption for heating below 15 kWh/m²/year, verified through specialized energy calculations (PHPP). More restrictive than nZEB, not legally mandatory.

Intended Use and Specifications

IV92 is the premium laminated wood window system for Passivhaus and strict nZEB projects. 92 mm profile, 92×80 mm frame and sash in laminated wood, 48–52 mm triple glazing with Ug 0.5 W/m²K, 3 Q-Lon gaskets.

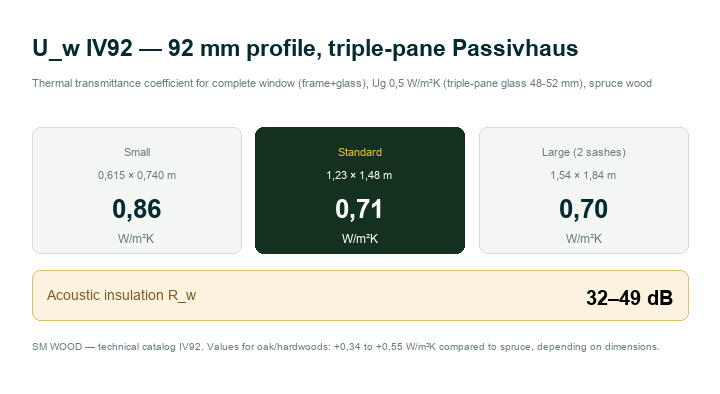

Uw is 0.71 W/m²K at the standard 1230×1480 mm size. For small windows (615×740 mm), Uw rises to 0.86 W/m²K. Acoustic insulation is 32–49 dB. We do not recommend VIG — the cost is not justified.

Use: projects requiring Uw below 0.80, high-end projects or passive-house requirements. Production volume is low in Romania; IV78 is sufficient for most nZEB projects, while IV92 is intended for stricter specifications.

IV92 technical specifications

Laminated wood windows with a 92 mm profile - values from our own production, for the standard size of 1230x1480mm.

Parameter	Value
Profile depth	92 mm
Laminated wood	Four-layer laminated, D4 adhesive
Standard Uw	0.71 W/m²K
Uw with Ug 0.2 (VIG)	below 0.73 W/m²K possible
Glazing	48-52 mm triple glazing
Standard Ug	0.5 W/m²K
Minimum possible Ug	0.2 W/m²K (VIG on request — not recommended on IV92)
Acoustic insulation	32-49 dB
Maximum sound insulation	up to 49 dB with acoustic glazing + 3 gaskets
Gaskets	3 x Schlegel Q-Lon
Standard hardware	Roto NX, micro-ventilation and burglar resistance
Optional hardware	Roto NX Concealed, RC1, RC2, RC3 upon request
Handles	Hoppe, Dauby, Galbusera, Linea Cali and other manufacturers upon request
Finish	Opaque RAL / NCS or Remmers translucent lacquer
Warranty	5 years
Lead time	8–12 weeks

Available Wood species

Standard species: spruce or pine for opaque RAL finishes, minimum lead time. Oak with translucent lacquer when the grain must remain visible. Meranti or larch for intense exterior exposure - natural resistance to humidity.

Spruce

Oak

Meranti

Larch

Pine

For Architects and Designers

We provide complete technical data (Uw, Ug, Uf, psi-spacer, g-factor) and DWG files for integration into documentation. IV92 appears in projects requiring a Uw below 0.80 W/m²K or documented energy calculations for Passivhaus. Complex thermal calculations (PHPP, full-assembly Uw/Ug, thermal bridges) are performed in-house by our master engineer. Please send plans to our contact address.

Request Technical Data for Your Project

Reference Projects

IV92 windows have been installed in Passivhaus-compliant projects and premium villas in Romania. Every order began with complete energy documentation.

REQUEST PERSONALIZED CONSULTATION

Custom configuration Available

Triple glazing from 48 to 52 mm, and up to 54 mm on request
Ug 0.5 W/m²K as standard; Ug 0.2 W/m²K vacuum glazing on request, though not recommended on IV92
Spruce or pine for opaque RAL finishes, oak where the grain must stay visible, meranti or larch for intense exterior exposure
Opaque RAL or NCS finish, or Remmers translucent lacquer
Handles from Hoppe, Dauby, Galbusera, Linea Cali or other manufacturers on request
Hardware configured for RC1, RC2 or RC3 requirements on request
Aluminium cladding on the exterior — the wood-aluminiumminium version of IV92
Sizes and opening configuration made to the drawings of the project

Request a Quote for Your window

SM Wood Customer Experience

We only listen to the opinions of people who sleep soundly in their homes during the deepest winter.
Authentic serenity is our greatest testimonial.

Very good. Everything was according to the timelines and expectations!

Florin Lonca
Cluj-Napoca

Excellent! I am very satisfied with the collaboration in every respect: price, responsiveness, execution speed, and quality. I recommend them with confidence.

Marius Moldovan
Residential house project, Cluj

It was great working with smwoodprocom – the finished product was great, and what we expected. They are willing to go the extra mile to meet the client's needs and are flexible!

Jerome B.
Prébailly, France

Frequently Asked Questions

No. For nZEB, we recommend joinery with a Uw below 1.0 W/m²K - IV78 with 0.81 W/m²K covers this recommendation with a margin. IV92 is relevant for the Passivhaus standard or stricter contractual requirements. Without this context, IV78 is the correct and sufficient choice.

A 14 mm deeper profile, 48-52 mm triple glazing compared to 40-44 mm. Uw is 0.71 vs 0.81. For small windows, 0.86 vs 0.96. The cost of IV92 is higher - the choice is made based on the requirements in the technical documentation.

PHPP is the official Passivhaus calculation software, developed by the Passivhaus Institut in Germany. The certified designer uses it to simulate the energy consumption of the entire building and verify that it falls below 15 kWh/m²/year for heating. Without that calculation, you don’t know if IV92 is necessary or if IV78 would be sufficient; it’s a matter of engineering, not preference.

8-12 weeks. Please confirm availability before including the profile in the estimate.

Yes, the wood-aluminiumminium version is also available for IV92. An aluminium profile is mounted on the outside of the wood, offering zero maintenance on the facade, while the thermal performance of the wood core remains unchanged.
