D78 External Wooden doors - The standard choice for new Homes

Request a Quote Technical specifications ->

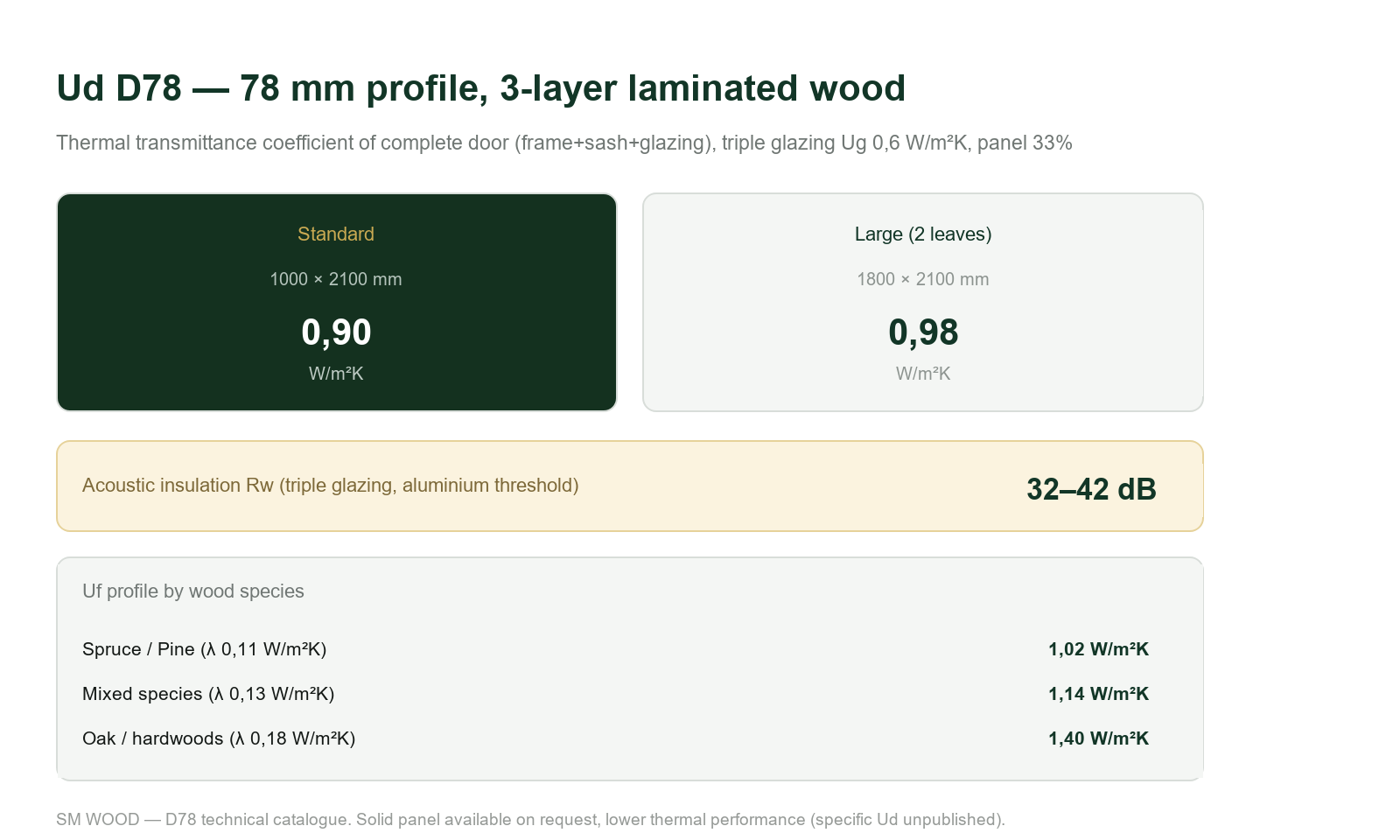

Ud 0.90 W/m²K

Thermal Insulation

32-42 dB

sound insulation

3 Q-lon gaskets

RC2

The entrance door you will never need to replace

D78 is the engineered wood entrance door we recommend for new builds and major renovations. The 78mm triple-layered laminated wood profile, the 3 Q-lon gaskets, and the Roto DoorSafe hardware with 5 locking points (or KFV with automatic safety locking) form a system that simultaneously meets the three practical requirements of any homeowner: it provides proper insulation, looks great, and remains trouble-free over time.

With standard triple glazing Ug 0.6 W/m²K, the overall Ud is 0.90 W/m²K - comfortably below the nZEB threshold, without requiring special configurations. Every door is custom-made in any size and configuration: single or double leaf, glazed or solid panel, in spruce or pine as standard, with other species on request.

Laminated wood door with two side lights and grille

Technical specifications

Parameter	Value
Frame profile	78 x 83 mm, triple or four-layer laminated wood
Door leaf profile	78 x 107 mm
Standard glazing	triple 40 mm - 4/16Ar/4/16Ar/4 Low-E, Ug 0.6 W/m²K
Glass	Saint-Gobain or Guardian
Aluminium threshold	Gutmann
Double glazing (optional)	26 mm - 4/18/4, Ug 1.0-1.1 W/m²K
Special glazing	up to 44 mm on request
Ud - triple glazing Ug 0.6 (standard)	0.90 W/m²K
Insulated solid panel	available on request
Solid panel structure	22 mm wood + 20 mm insulation + 22 mm wood = 64 mm
Sound insulation	32-42 dB
Gaskets	3 x Q-lon (PUR core, UV-resistant PE cladding)
Standard hardware	Roto DoorSafe 5 points + Simonswerk Baka hinges
Security	RC2
Standard handles	Hoppe (white, brown, silver, bronze, gold)
Standard size	1000 x 2100 mm
Warranty	5 years
Production time	8-12 weeks

>

Glazing - double or triple

Triple glazing 40 mm (standard) - Ug 0.6 W/m²K, overall Ud 0.90 W/m²K. The correct choice for new builds, nZEB requirements, and any situation where thermal and acoustic performance is a priority.

Double glazing 26 mm (optional) - Ug 1.0-1.1 W/m²K. Available for renovations where the existing opening does not allow for the depth required for triple glazing, or for projects with a specific budget and more relaxed energy requirements.

Glazing 44 mm - on request, for special configurations with acoustic or burglar-resistant glass that require thicker units.

Laminated wood door with horizontal paneling and two side lights

D68, D78 or D92?

Parameter	D68	D78	D92
Profile	68 mm	78 mm	92 mm
Ud triple glazing	1.28 W/m²K	0.90 W/m²K	0.73 W/m²K
Gaskets	2	3 Q-lon	3 Q-Lon + thermal break
Maximum security	–	RC2	RC2 / RC3
Suitable for nZEB projects	non-compliant	compliant	compliant
Typical use	renovation	new home / major renovation	Passivhaus / RC3 security

Key thermal comparison:

D78 vs D68 – Profile difference of only 10 mm results in a 30% thermal improvement (Ud 0.90 vs 1.28), meaning lower heat loss over the entire service life of the door.
D78 vs D92 – D92 offers Ud 0.73 and RC3 security, justified for Passivhaus or explicit higher-security requirements. For a standard nZEB home, D78 is sufficient.

Q-lon gaskets - 3 rows

Each gasket is a separate layer that blocks the infiltration of cold air, moisture, and noise. The polyurethane foam core does not stiffen at sub-zero temperatures - the door seals just as tightly at -15°C as it does at +20°C. The polyethylene cladding resists UV rays and pollution without visible degradation.

Gaskets are available in brown, white, black, and grey - chosen to harmonise with the finish colour.

Brown

White

Grey

Black

Available wood species

D78 is manufactured in seven types of triple or four-layer laminated wood. The choice of species influences the Uf-value of the frame, the appearance under translucent stains, and its behaviour in outdoor humidity.

Spruce

Oak

Meranti

Larch

Pine

Customisation options

Finish

Any RAL or NCS colour - independent colours for the two sides
Translucent stain on the chosen species
Remmers Aqua Stopp paints - uniform coverage on laminated wood
The finishing system is elastic and vapour-permeable — it accommodates the seasonal movement of the wood without cracking.
Glazing and panel
Standard Low-E triple glazing
Acoustic, ornamental or anti-burglary glass on request
64 mm thermally insulated solid panel
Mixed configurations (panel + glazing on the same leaf)
Hardware and access
Roto DoorSafe 5-point locking - standard
Electronic locking (motorized lock) - bluetooth or app access
Fingerprint reader
Strike plate with manual day/night device
RC2 security on request - additional hardware + laminated or burglar-resistant glass

Glazing and panels

Standard Low-E triple glazing
Acoustic, ornamental, or burglar-resistant glass on request
64 mm thermally insulated solid panel
Mixed configurations (panel + glazing on the same leaf)

Dimensions

Single leaf: any size according to the existing opening
Double leaf: up to 1800 mm width
The price of external wooden doors varies depending on the wood species, size, and hardware - request a free quote.

D78 laminated wood door with vertical paneling

Design

Applied panels - decorative panels on the interior or exterior face of the leaf
Mouldings - applied profiles for a classic or contemporary look
0 mm threshold - flush profile with the floor, available on request for a barrier-free transition (less thermally efficient)
Standard Hoppe handles; on request Dauby, Linea Cali, Galbusera, Maestro

Request a Quote for Your Door

When D78 is the right choice

It makes sense when:

The house is a new build or a major renovation with a rebuilt opening
The energy requirement is nZEB - Ud 0.90 fits with a margin
RC2 security covers the situation (standard residential area)
Wood species and colours are a decision factor - 7 species and any RAL
You want a solid wood exterior door, not a PVC or aluminium substitute

It does not make sense when

The existing old-frame opening does not allow 78 mm depth - D68 solves the situation
The performance requirement is Ud below 0.80 W/m2K - D92 at Ud 0.73
The security requirement is RC3 - D92 is the only series in the range that can be equipped to RC3

Frequently asked questions

Yes. Ud 0.90 W/m²K with triple glazing Ug 0.6 falls below the nZEB threshold for external doors. The actual value depends on the door size and glazing configuration - we can provide data for energy calculations on request.

Three gaskets mean three separate layers for blocking air and moisture. In the D68 (2 gaskets), draught effects at the base of the door and in corners occur more frequently at low temperatures. In the D78 (3 Q-lon gaskets), the contact pressure on the seal is higher and more uniform across the entire perimeter.

Yes. 26 mm double glazing (4/18/4, Ug 1.0-1.1) is available - often used in renovations where the opening does not allow for the depth required for triple glazing. The overall Ud increases compared to 0.90; the exact value depends on the configuration.

Meranti or larch, available on request - species with natural moisture resistance superior to spruce. If the door has an overhang or protection, spruce works perfectly with the correct finish.

Yes. D78 can be equipped with an electronic lock (motorized lock) controlled via remote or app and/or with an integrated fingerprint reader. The strike plate with a day/night device allows for additional internal mechanical locking beyond the standard hardware.

Yes. We install throughout Romania.
